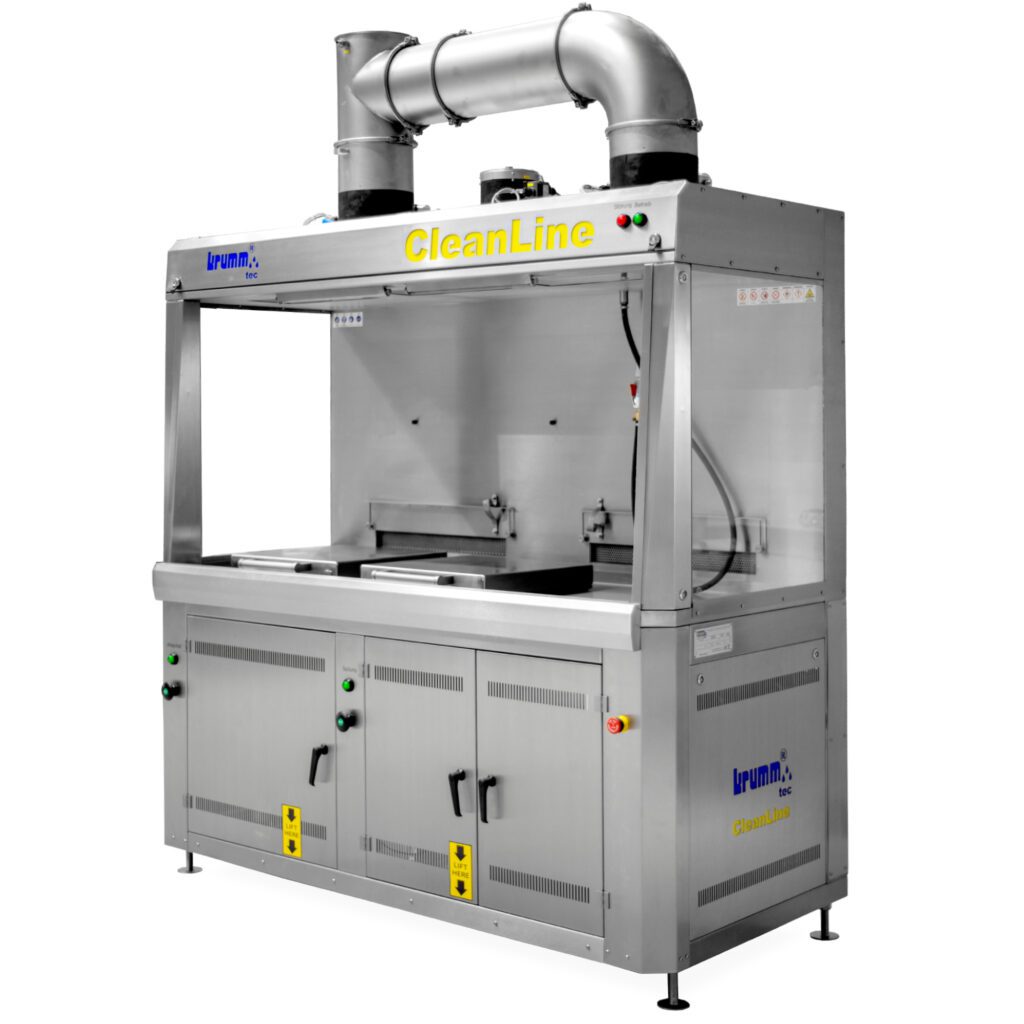

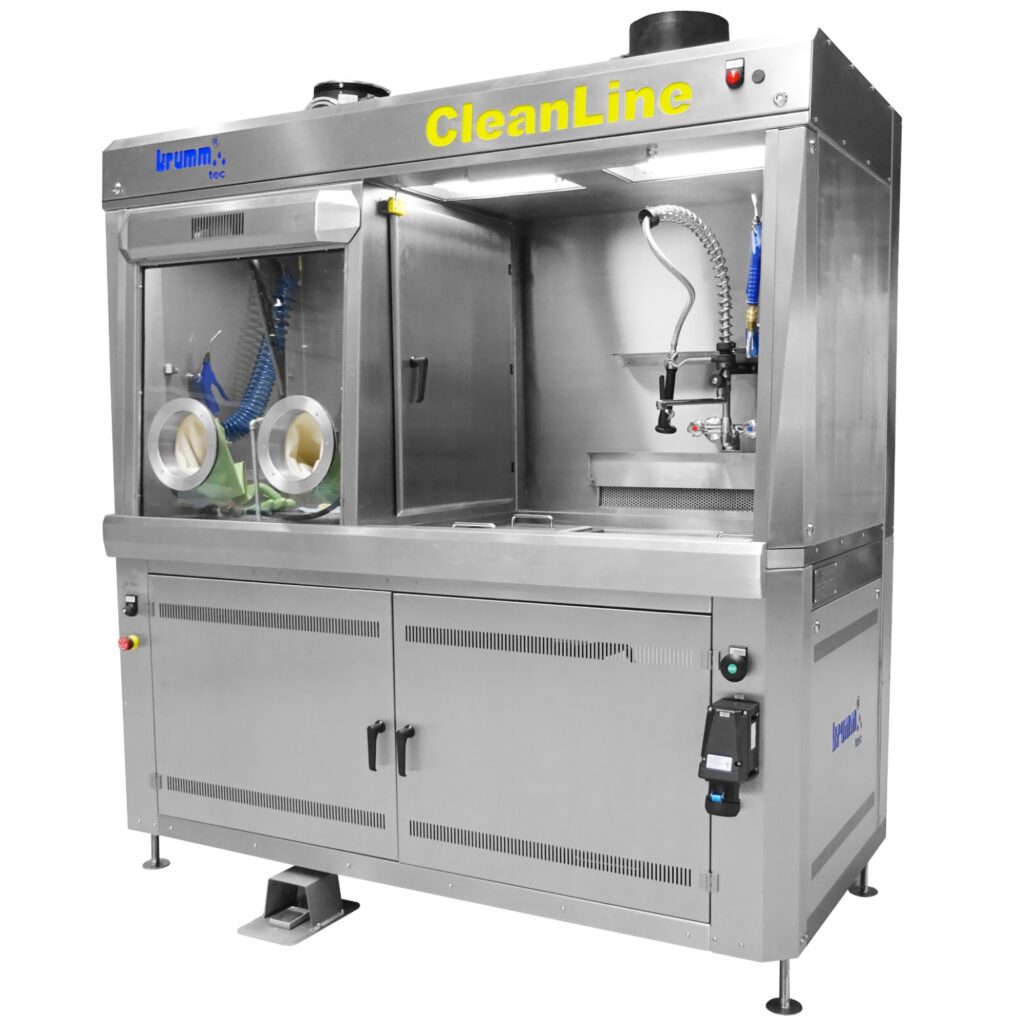

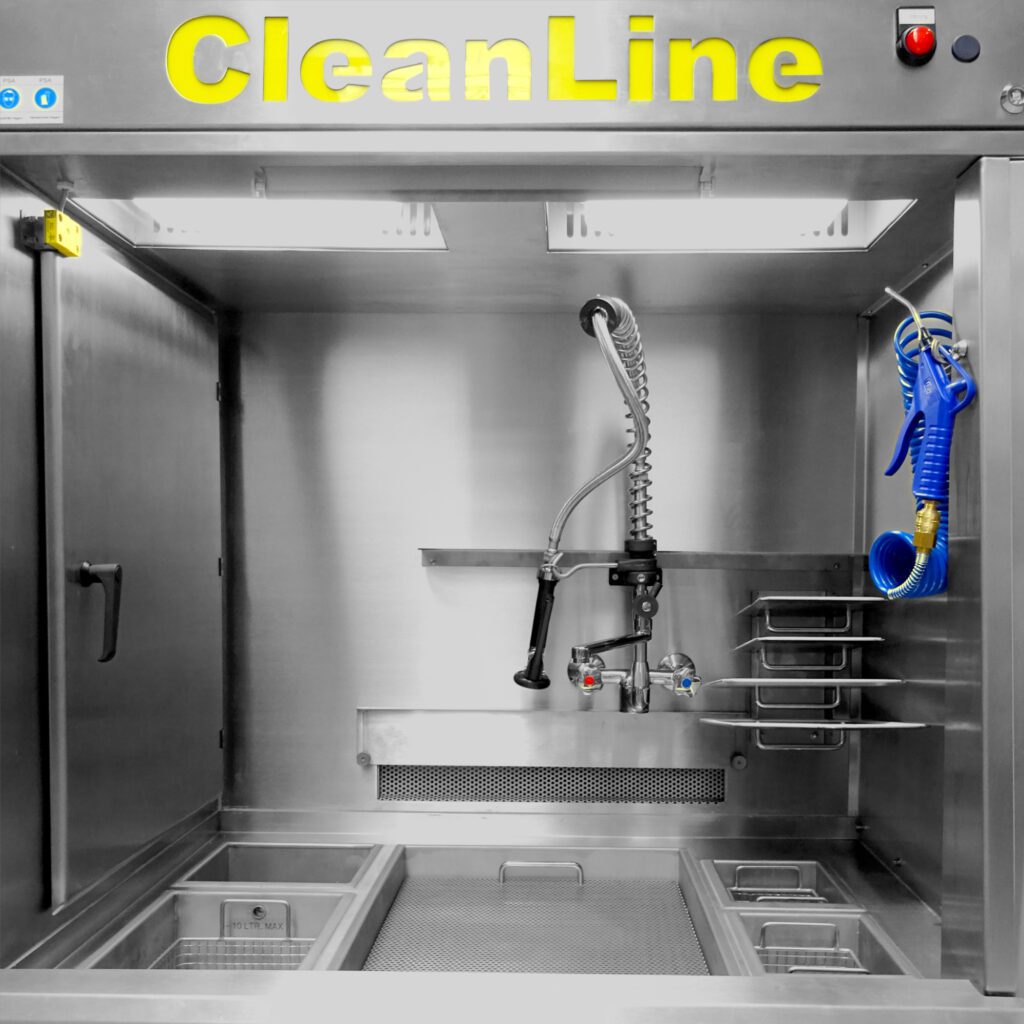

The CleanLine 2000 is a basic solution (width approx. 2000 mm) that can be extended individually according to our customers’ requirements. When assembling the components, you can draw on our entire Krumm product range (see applications).
The equipment of the CleanLine can be individually adapted to your cleaning solution, thus all cleaning methods from our product range are possible.
-
Workpiece material
- Air filter - Krumm-tec
- Electronic components
- FDM (prototyping)
- Metal
- Metal (prototyping)
- Plastics
- Polyjet (prototyping)
- SLA (prototyping)
- SLS (prototyping)
-
Sizes
- Larger sizes than 1300 x 1100 mm
- Medium sizes 1300 x 1100 mm
- Modular systems
- Small sizes 600 x 800 mm
-
Cleaning
- Acetone
- Degreasing Concentrate
- Granulate
- Isopropanol
- Ethanol
- Hydrocarbons
- Caustic Soda
- Sand
- Snow
- Dry Ice
- Water
- Aqueous Solutions
- Compressed Air
- GlassBulbs
- Nitrogen
-
Methods
- Solutions for high pressure cleaning
- Solutions for Blasting of acids & highly toxic substances
- Solutions for low pressure cleaning with solvent
- Solutions for Blasting dry ice and with granulates
- Solutions for Dust separation | Dust removal
- Solutions for Degreasing | Derusting | Passivation
- Solution to disinfect and sterilise
- Solution for Extraction and filtration
- Rinsing | Oscillation | Immersion cleaning
- Products for Ultrasonic cleaning
-
Specifications
Dimensions
Height: 2800 mm | Width: 2000 mm | Depth: 870 – 950 mm
working height: 950 mm +/- 50 mm 1050 mm
usable space: 900 x 600 mm
Weight: 280 kg 625 kPower connection
Spannung: 400 V, 50 Hz, L1, L2, L3, N, PE
Connected load: 2,7 kW
Power fuse: 6,75 ACleaning parameters
Compressed air: 6 bar
