FPG 2000 – Krumm-tec

For cleaning, purging, pressure and flow measurements

Formprüfgerät Krumm-tec

FPG 2000 – for Cleaning, purging, pressure and flow measurements for cooling channels. By request remote maintenance via internet or modem.

  • Control of the flow rate
  • Density control of the cooling channels and interfaces
  • Dry rinsing with compressed air
  • Manual flushing range in direction
  • ≤ 10 channels can be connected

  • Sizes

    • Modular systems
  • Cleaning

  • Specifications

    Channels:
    2

    Pressure test:
    7 bar

    Cleaning pressure medium:
    2–4 bar

    Necessary compressed air connection:
    6 bar

    Volume flow / Pump:
    18 l/min

    Power connection V/A / Hz:
    400/16 / 50

    Tank capacity min./max.:
    60/100 l

    Filter element min./max.:
    100/300 μ

    Dimensions (LxBxH):
    1200x1000x1200mm

    Weight:
    400 kg

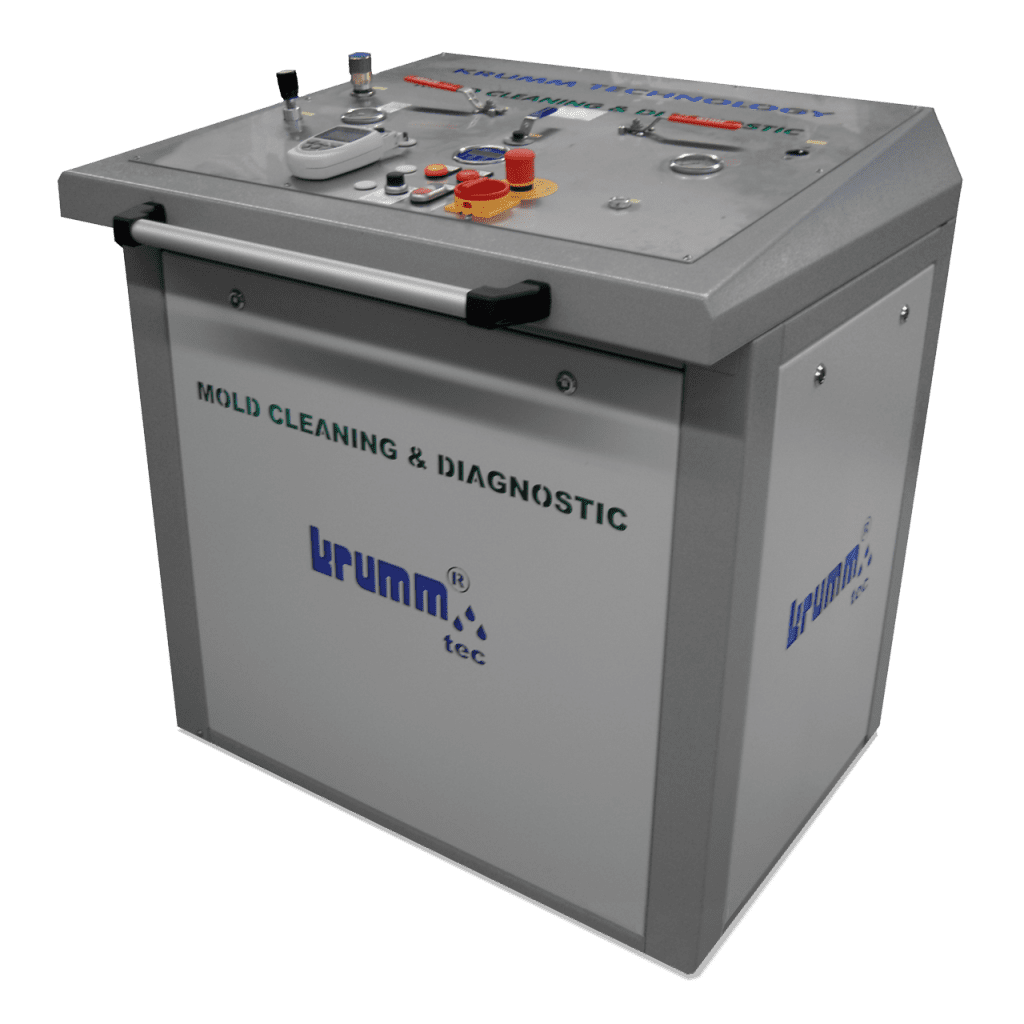

Detail-/Product Pictures

  • Formprüfgerät Krumm-tec
  • Formprüfgerät Krumm-tec
