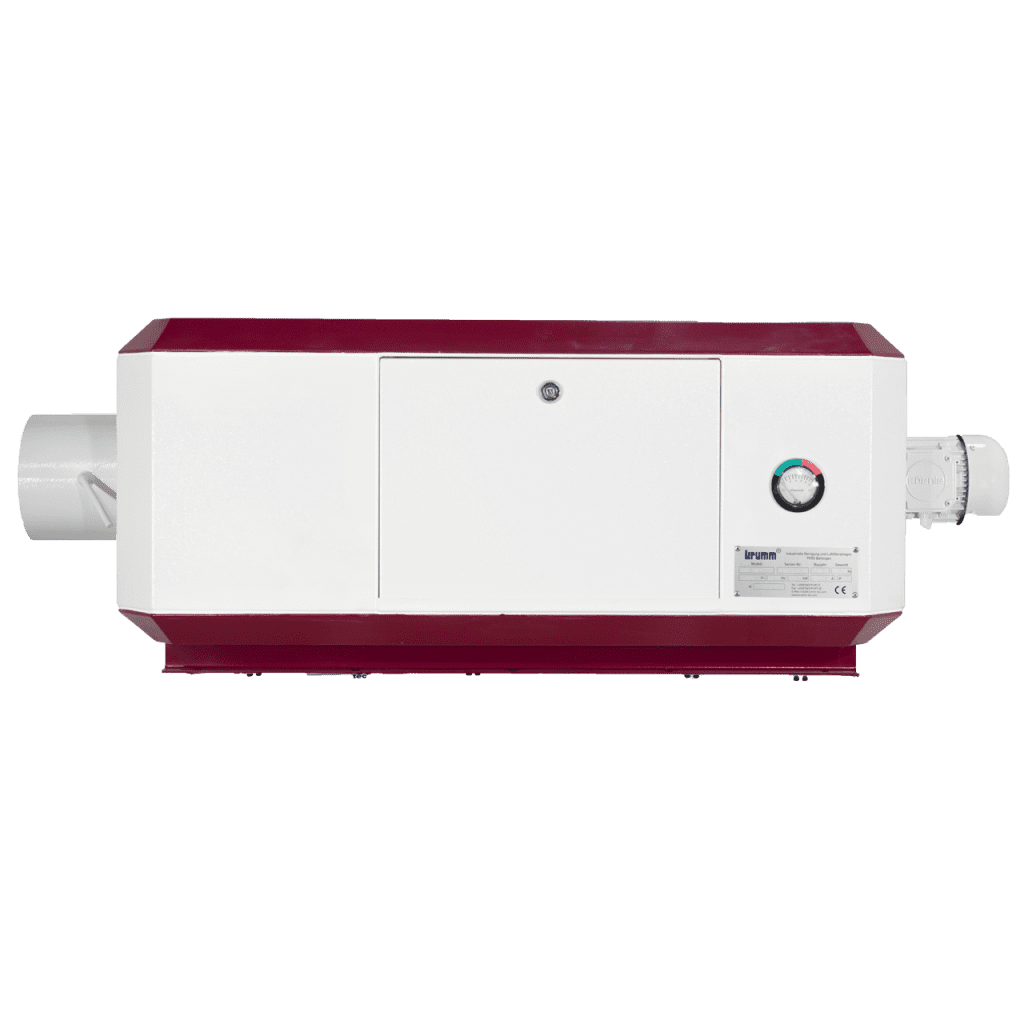

LRF 1K5 System – Krumm-tec

Air performance/volume flow of 1500 m³/h, Sound level 60 dB(A)

Luftfilter Industrie

There are several constructions and sizes of these air filter systems and on customer request, deliverable with and without sound absorber. For effective, powerful extraction and filtration of solid parts and dry dust, steams and gas of cleaning agents, oil-, emulsion and minimum lubrication fog, welding smoke and flame cutting smoke.

  • Modular construction
  • Setting of volume air stream
  • Multi-pillar rack, rotary and height adjustable
  • Customized mounting conceptions of the air filter systems
  • Air exhaust, user-definable on left or right side, horizontal or vertical

  • Cleaning

  • Specifications

    Principle function:
    mechanisc

    Air capacity:
    1500 m³/h

    Output::
    0,37 kW

    Tension:
    400 V / 50/60 Hz

    Protection category:
    IP 54

    Sound level:
    70 dBA

    External dimension (WxHxD):
    1100 x 450 x 650 mm

    Weight:
    55 kg

    Adapter:
    150/200 mm

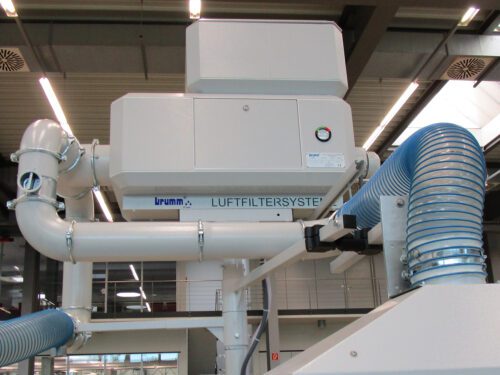

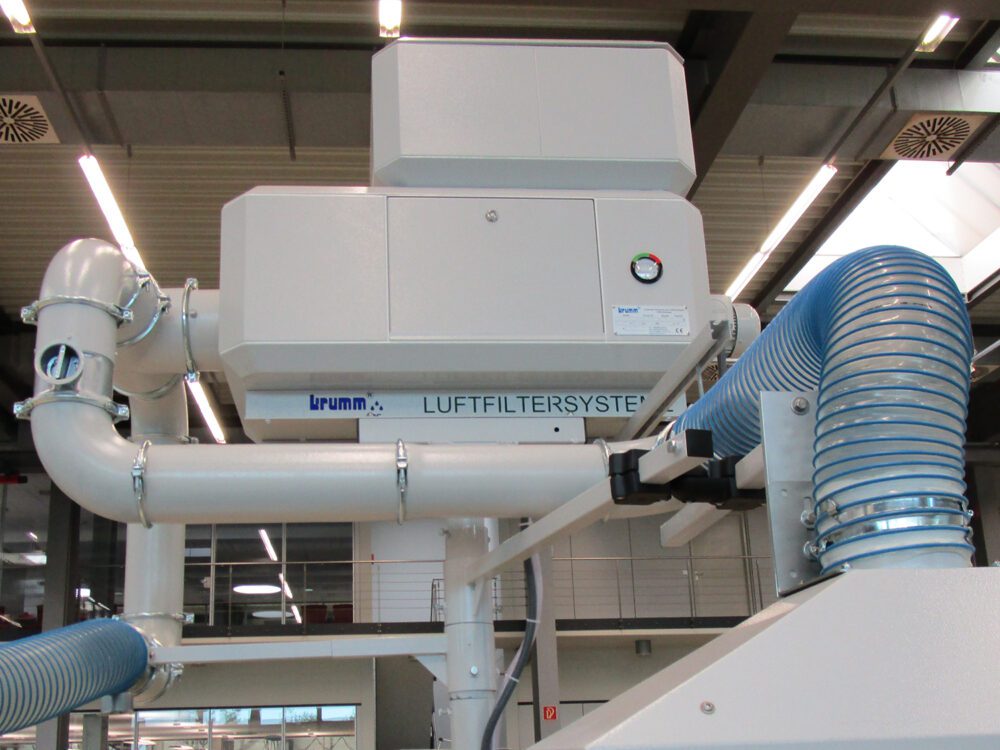

Detail-/Product Pictures

  • Luftreinigungsfilter Krumm-tec
  • Luftreinigungsfilter Krumm-tec
  • Luftreinigungsfilter Krumm-tec
  • Luftreinigungsfilter Krumm-tec
